Bordeaux:Network
From Grid5000
Network: Global | Bordeaux | Grenoble | Lille | Luxembourg | Lyon | Nancy | Orsay | Reims | Rennes | Sophia | Toulouse
See also: Network Admins | Network survival guide
Contents |
Plans

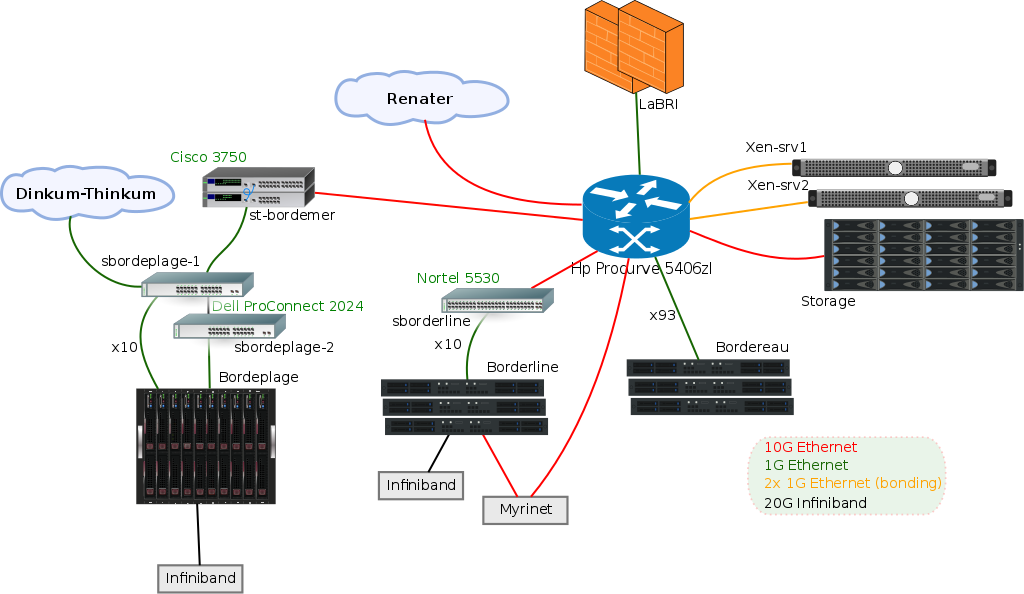

Interconnexion globale

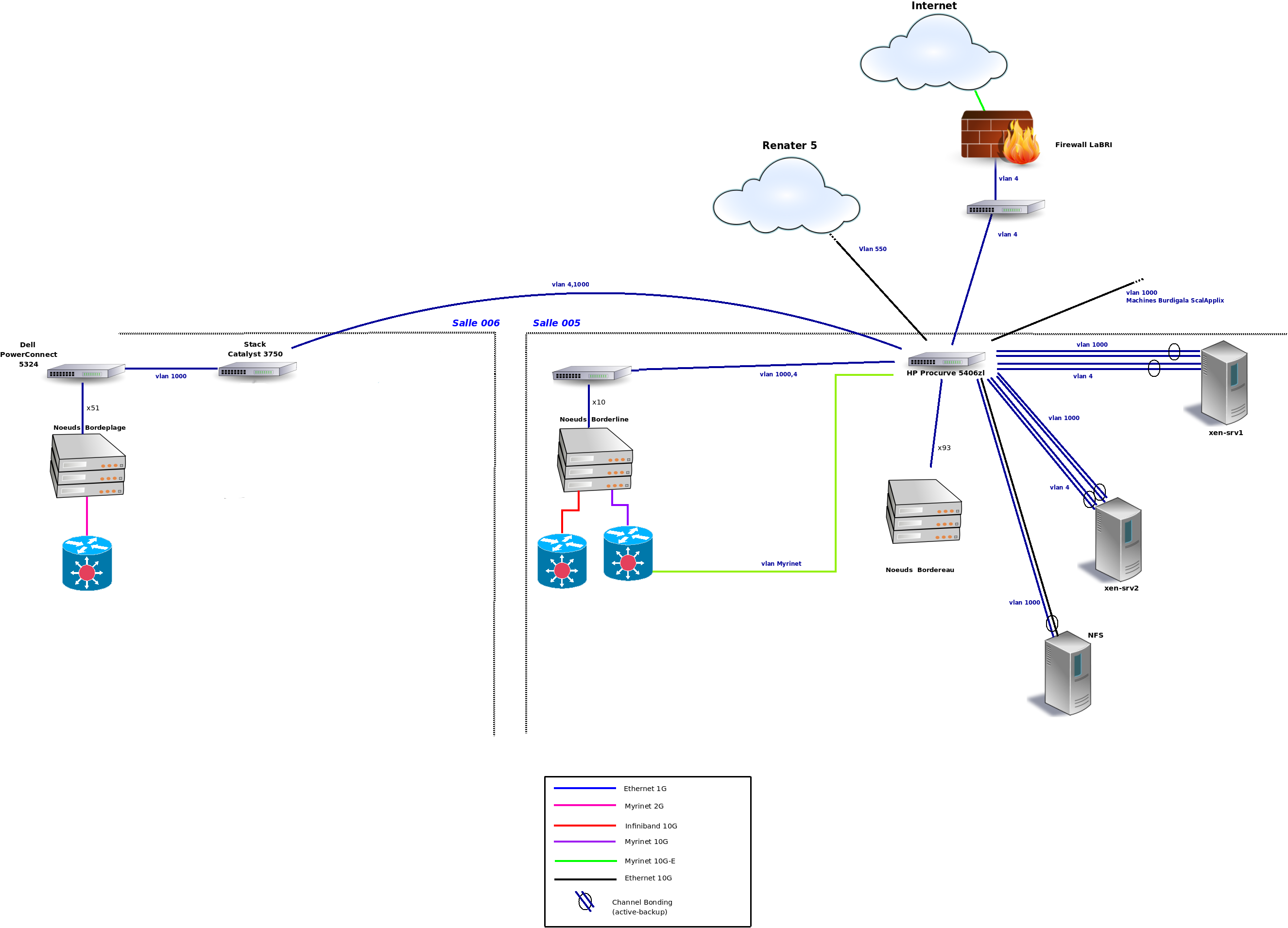

See also this other scheme Bordeaux Network (pre Network golden-rules)
VLANs
- 4: LaBRI Network for David Sherman cluster.
- 100: Production Network
- 101: Admin Network (BMC/DRAC/APC)
- 104: Hemicyclia network
- 550: RENATER 5
IP networks in use
You have to use a public network range to run an experiment between several Grid5000 sites.
Grid'5000 Networks
- computing : 172.16.0.0/20
- ib/mx : 172.18.0.0/20
- virtual : 10.128.0.0/14
For Infinband (ib/mx) see High Performance Networks
Local (Site) Networks
- admin : 172.17.64.0/20
- nat : 192.168.69.0/30
- LaBRI's "experimental network" : 192.168.100.0/24
-
192.168.100.1: LaBRI Intel host -
192.168.100.3: D.Sherman Cluster dinkum-thinkum.labri.fr (g20 bordeplage) -
192.168.100.4: Grid'5000 access.bordeaux.grid5000.fr -
192.168.100.5: D.Sherman Cluster hotspare mycroft.labri.fr (g19 bordeplage) -
192.168.100.6: D.Sherman Virtualization container quinetucket.labri.fr (g18 bordepalge) -
192.168.100.231: Grid'5000 gw.bordeaux.grid5000.fr -
192.168.100.254: LaBRI proxy Astro
-
IP mapping (details)
bordeplage
| eth0 | eth1 | ib0 | bmc |
|---|---|---|---|
| 172.16.0.1-51 | 172.16.3.1-51 | 172.18.0.1-51 | 172.17.0.1-51 |
bordereau
| eth0 | eth1 | bmc |
|---|---|---|
| 172.16.1.1-93 | 172.16.4.1-93 | 172.17.1.1-93 |
borderline
| eth0 | eth1 | ib0 | myri0 | bmc |
|---|---|---|---|---|
| 172.16.2.1-10 | 172.16.5.1-10 | 172.18.2.1-10 | 172.18.2.11-20 | 172.17.2.1-10 |
Non Grid5000 Equipment
- the Genome Cluster : we provide network connectivity from the room 006 to the labri (hosting lab) through the grid5000 equipments (Dell powerconnect of bordeplage, ports g19 and g20), in the 192.168.100.0/24 subnet :: they currently dispose of 2 addresses : 192.168.100.3 and 192.168.100.5
- Hemicyclia : we provide network connectivity to link equipments in bordeaux,grenoble and orleans. atm hosted in 172.16.9.0/28
High Performance Networks
| Cluster | Myrinet | Infiniband |
|---|---|---|
| Bordeplage |
| Type: Mellanox Technologies MT25208 InfiniHost III Ex (Tavor compatibility mode) (rev a0) Driver=ib_mthca Switch: TopSpin 270/ Cisco SFS 7008 |
| Bordereau |
|
|
| Borderline | Type: MYRICOM Inc. Myri-10G Dual-Protocol NIC (10G-PCIE-8A) over ethernet Driver=mx ethernet (myri) Switch: XG700 Fujitsu 10Gps Ultra-low latency 12-port Switch, with wire speed switching operation Routé sur Grid5000: Attaché au routeur Procurve 5046zl, dans un vlan a part. | Type: Mellanox Technologies MT25418 [ConnectX IB DDR] (rev a0) Driver=mlx4_core Switch: Mellanox M24D0601A 24-port Infiniband Double Data Rate switch with single PSU |
